2210 / 2215 2 Inch Exhaust Louvers

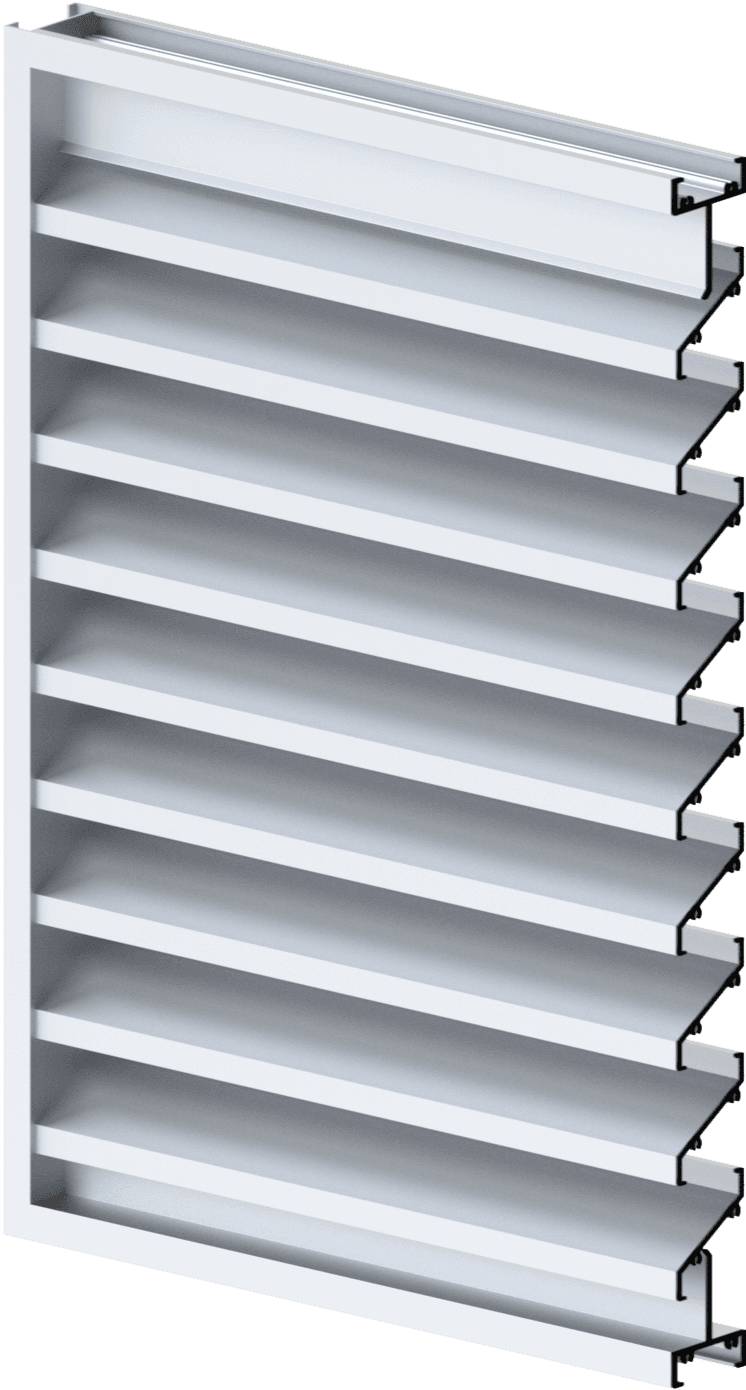

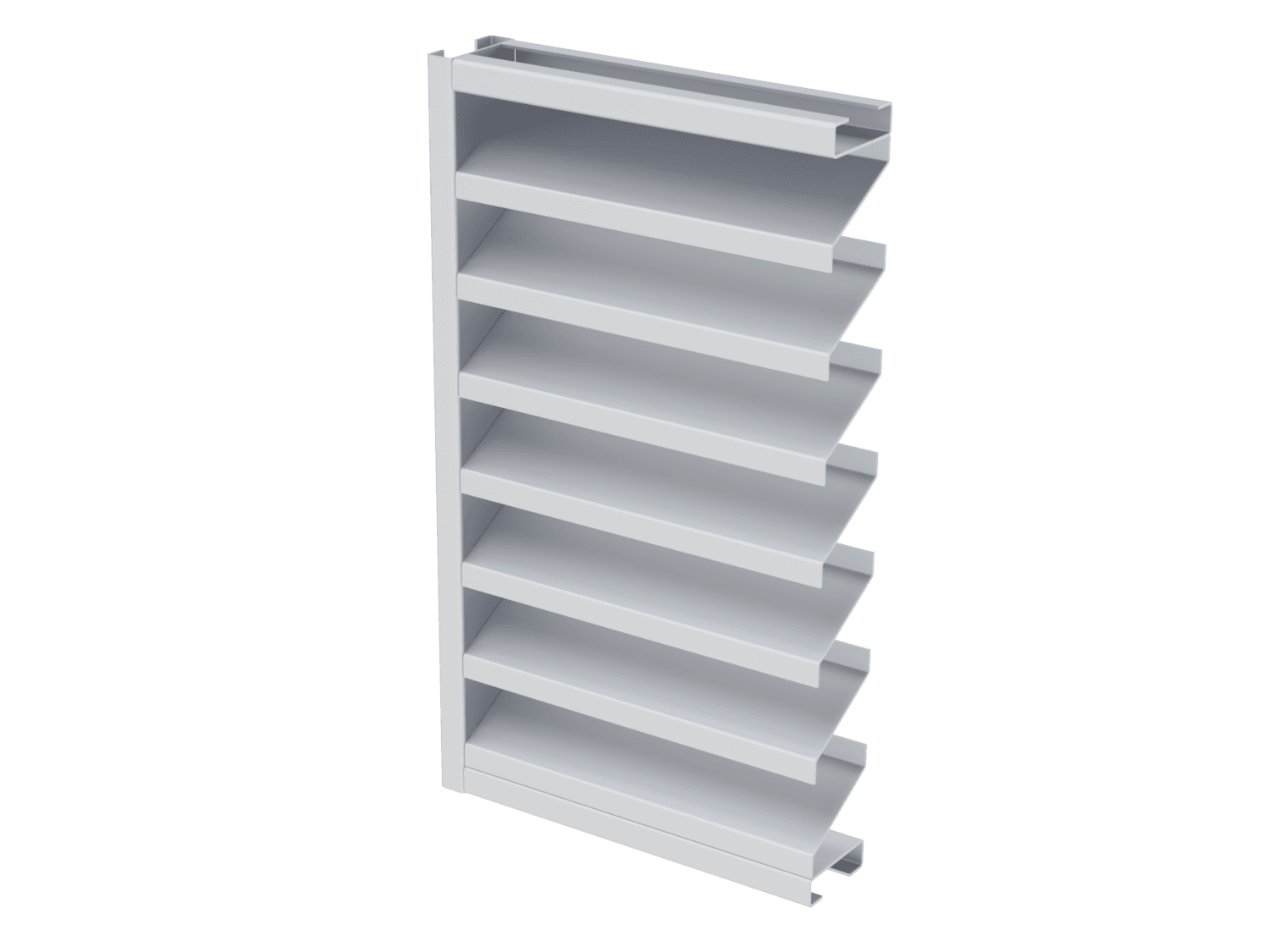

The Ventex 2210/2215 is a two inch (51 mm) deep, extruded aluminum straight blade exhaust louver with a high free area. The 2210/2215 is normally used as an exhaust louver for applications where the total CFM is relatively low or the louver height is restricted. The models are AMCA Certified for Water Penetration and Air Performance.
Standard Construction
Custom configurations available
This product can be manufactured in alternative materials, sizes, and mounting options to meet your project requirements. Contact us to discuss specifications.
Contact UsAvailable Accessories
Additional Notes
The 2210/2215 is AMCA certified, meeting industry standards for water penetration and air performance.
The 2210/2215 sits at the shallow end of the Ventex stationary wall louver range, making it well suited for applications where wall depth or louver height is constrained. The straight blade configuration and high free area make it a practical choice for low-CFM exhaust applications in residential, light commercial, and institutional buildings, including bathroom exhaust openings, mechanical closets, and equipment rooms with restricted opening heights.
Documents
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
