2630DC / 2635DC 6 Inch Deep Drainable Louvers

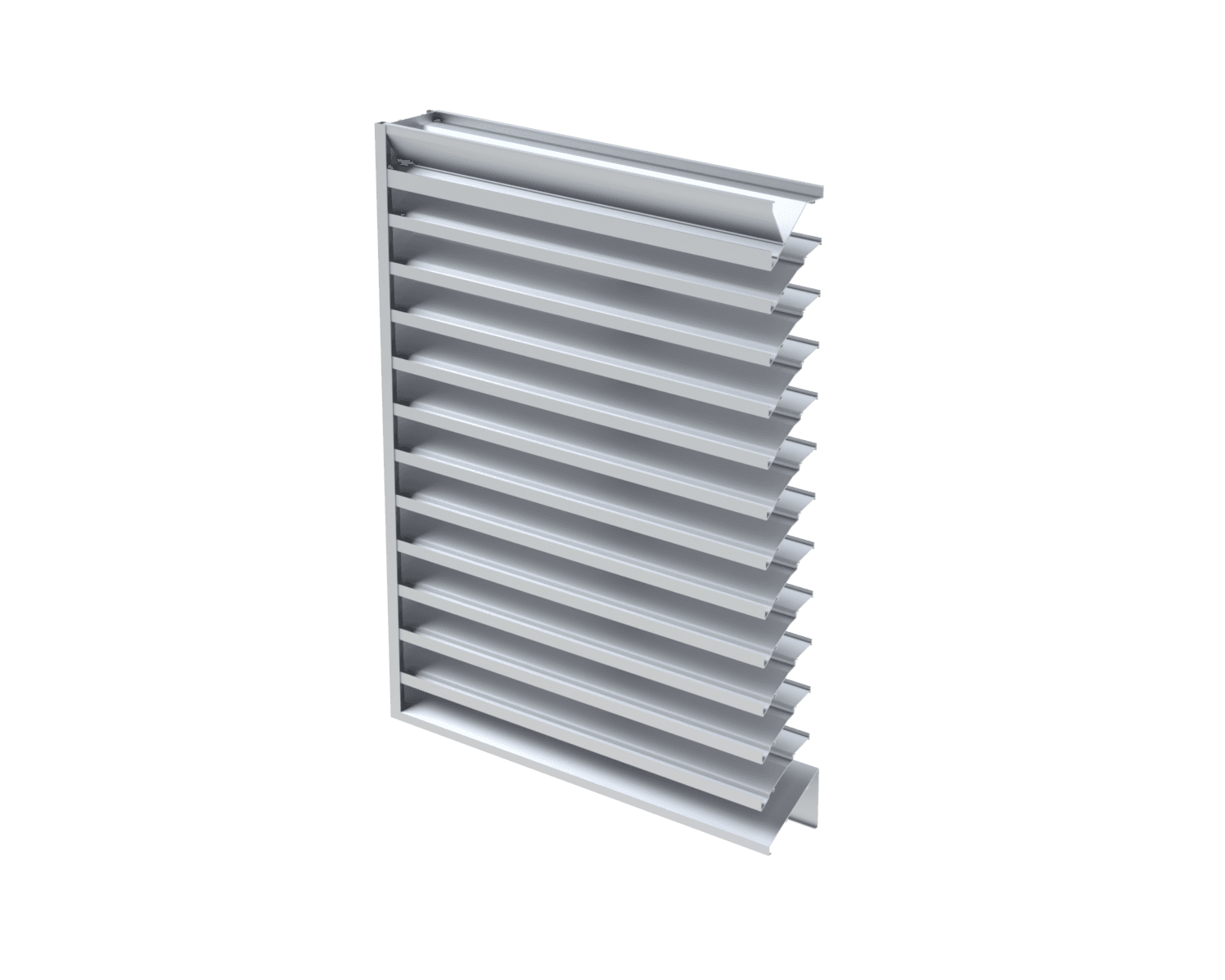

The Ventex 2630DC/2635DC is a six inch (152 mm) deep, extruded aluminum stationary drainable louver. The drainable blade design provides optimal protection from water penetration while the high free area of 61.3% minimizes pressure drop. The 2630DC/2635DC is AMCA certified for both water penetration and air performance.
Standard Construction
Custom configurations available
This product can be manufactured in alternative materials, sizes, and mounting options to meet your project requirements. Contact us to discuss specifications.
Contact UsAvailable Accessories
Additional Notes
The 2630DC/2635DC is AMCA certified, meeting industry standards for water penetration and air performance.
The six inch depth and drainable blade configuration of the 2630DC/2635DC deliver high free area and reliable water rejection in a compact profile. The 35 degree blade angle and 3.750 inch blade centres produce a 61.3% free area ratio, making it a strong choice for exterior wall applications where maximum airflow and water protection are both required. The beginning point of water penetration at 943 FPM confirms its performance in demanding intake and exhaust installations.
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
