2660 Vision Screen - Horizontal Blade

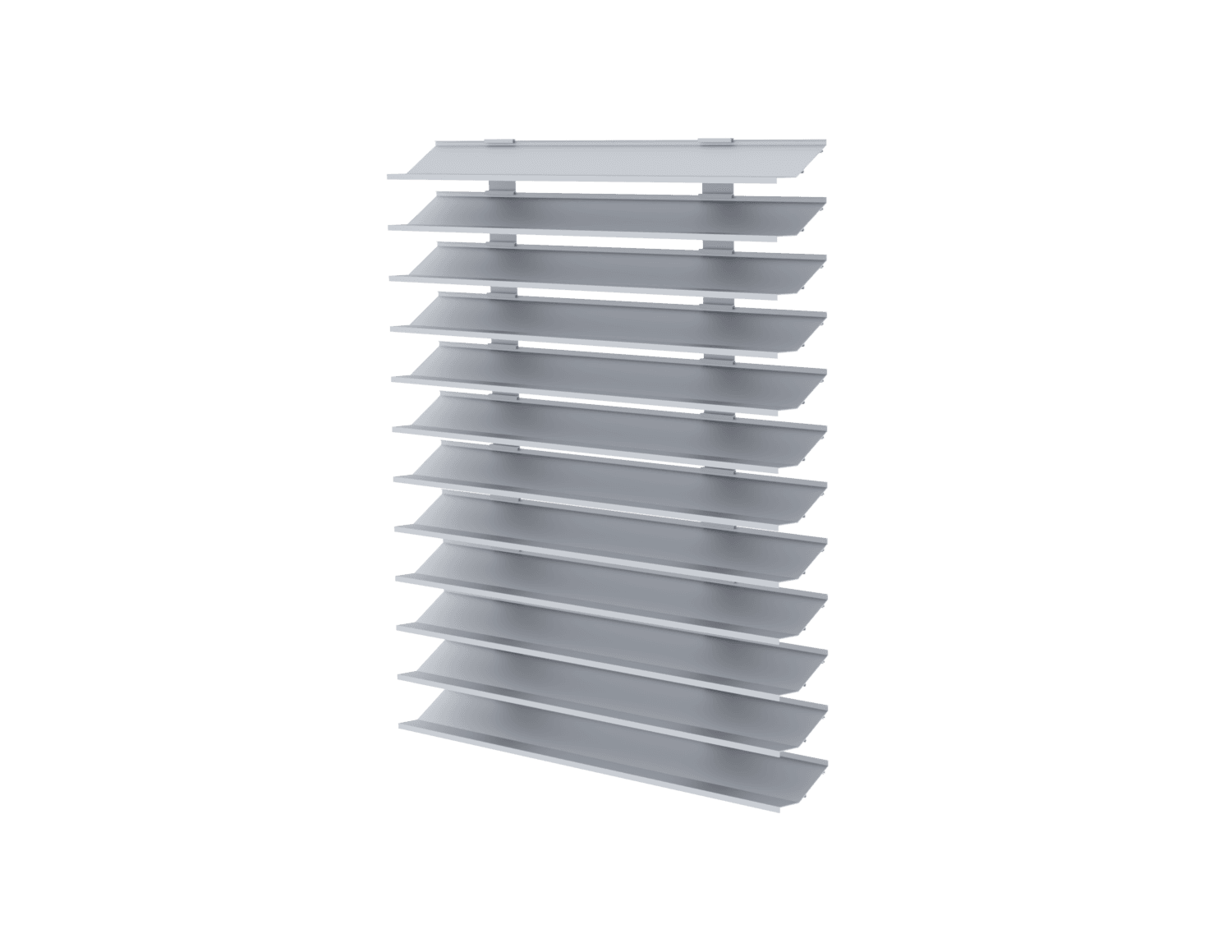

The Ventex 2660 Vision Screen is a high free area extruded aluminum architectural screen designed to enhance a building's exterior while concealing mechanical equipment and other utilitarian elements. It’s 6” deep blades and 4 ¾” blade spacing create a bold appearance, while providing vision control and ventilation, making it suitable for screening rooftop mechanical equipment, parking garage openings, cooling towers, trash enclosures, and similar applications. Custom engineered to suit specific project requirements.
Standard Construction
Additional Notes
The 2660 Vision Screen is available in mill finish as standard, with baked enamel, Duranar, and anodized finish options available.
The 2660 features extruded 6063-T5 aluminum construction with 0.081" frame and blade thickness, 50° blade angle, and 4.75" blade centres. It supports continuous line construction with hidden mullions for an uninterrupted appearance, and aluminum supports and clip angles are available for attachment to a structural frame. Hinged access doors and stainless steel fasteners are also available as accessories.
Documents
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
