ACL1230 / ACL1235 12 Inch Deep High Free Area Blade

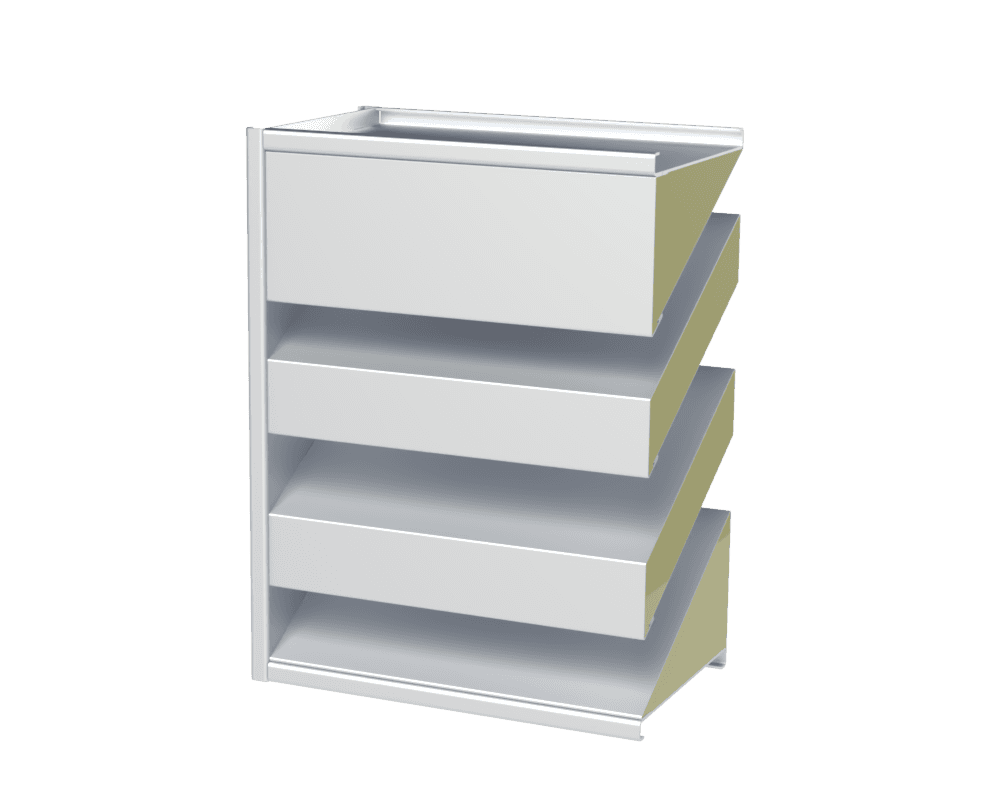

The Ventex ACL1230/ACL1235 is a twelve inch (305 mm) deep, formed aluminum 30 degree blade acoustic louver. The ACL1230/ACL1235 is designed for applications that require noise reduction alongside ventilation for equipment or machinery, and is commonly used in pumping stations and portable generators.
Standard Construction
Custom configurations available
This product can be manufactured in alternative materials, sizes, and mounting options to meet your project requirements. Contact us to discuss specifications.
Contact UsAvailable Accessories
Additional Notes
The ACL1230/ACL1235 is AMCA certified, meeting industry standards for air performance and water penetration resistance.
The 30 degree blade angle of the ACL1230/ACL1235 produces a significantly higher free area compared to the standard 45 degree configuration, making it the preferred choice when airflow capacity is the primary concern alongside noise reduction. At twelve inches deep, it is well suited for large ventilation openings in data centres, industrial facilities, and critical infrastructure buildings where both high air volume and acoustic performance are required.
Documents
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
Related products

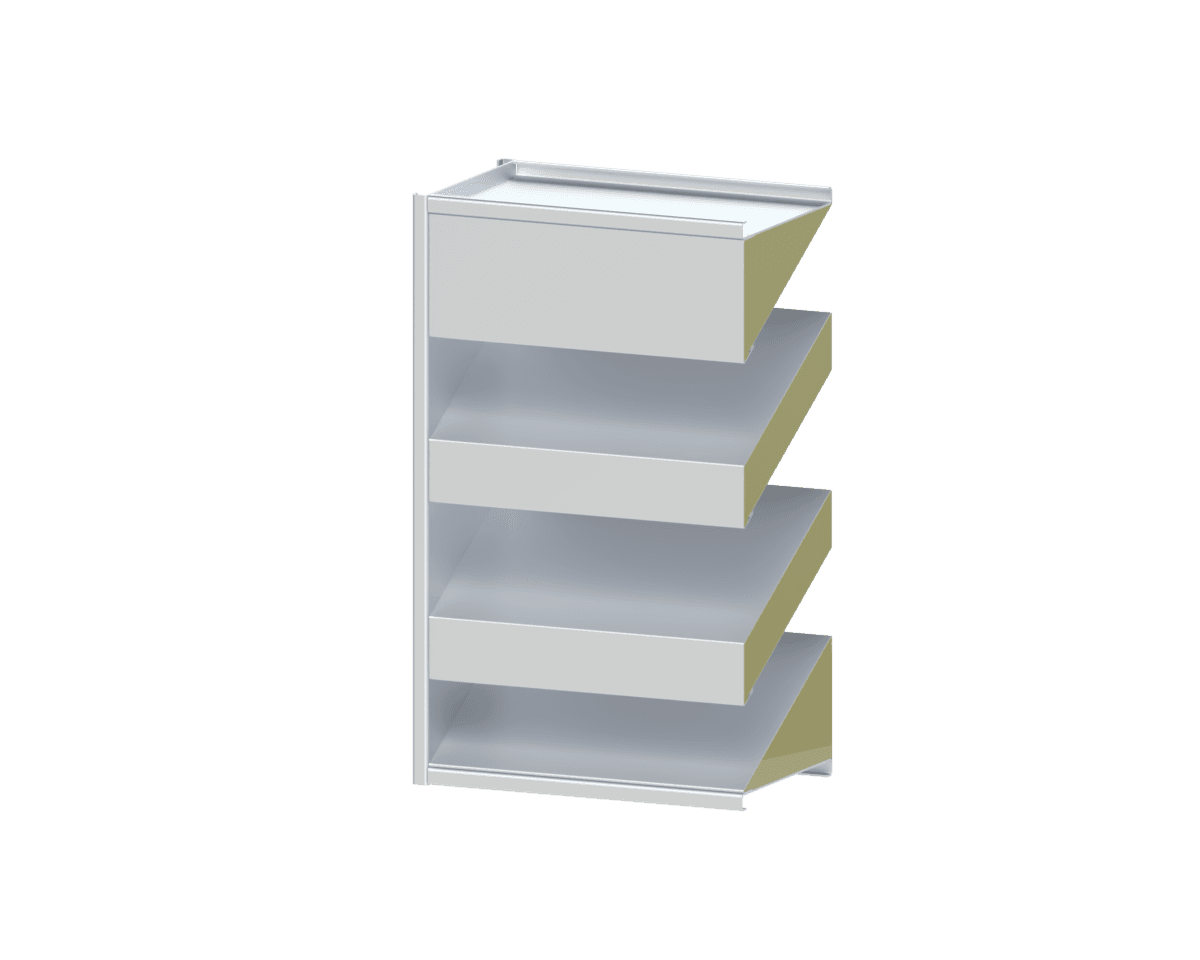

ACL1230D / ACL1235D 12 Inch Deep Drainable Blade
12" deep formed aluminum drainable blade acoustic louver for noise reduction and ventilation.Aluminum, Galvanized Steel

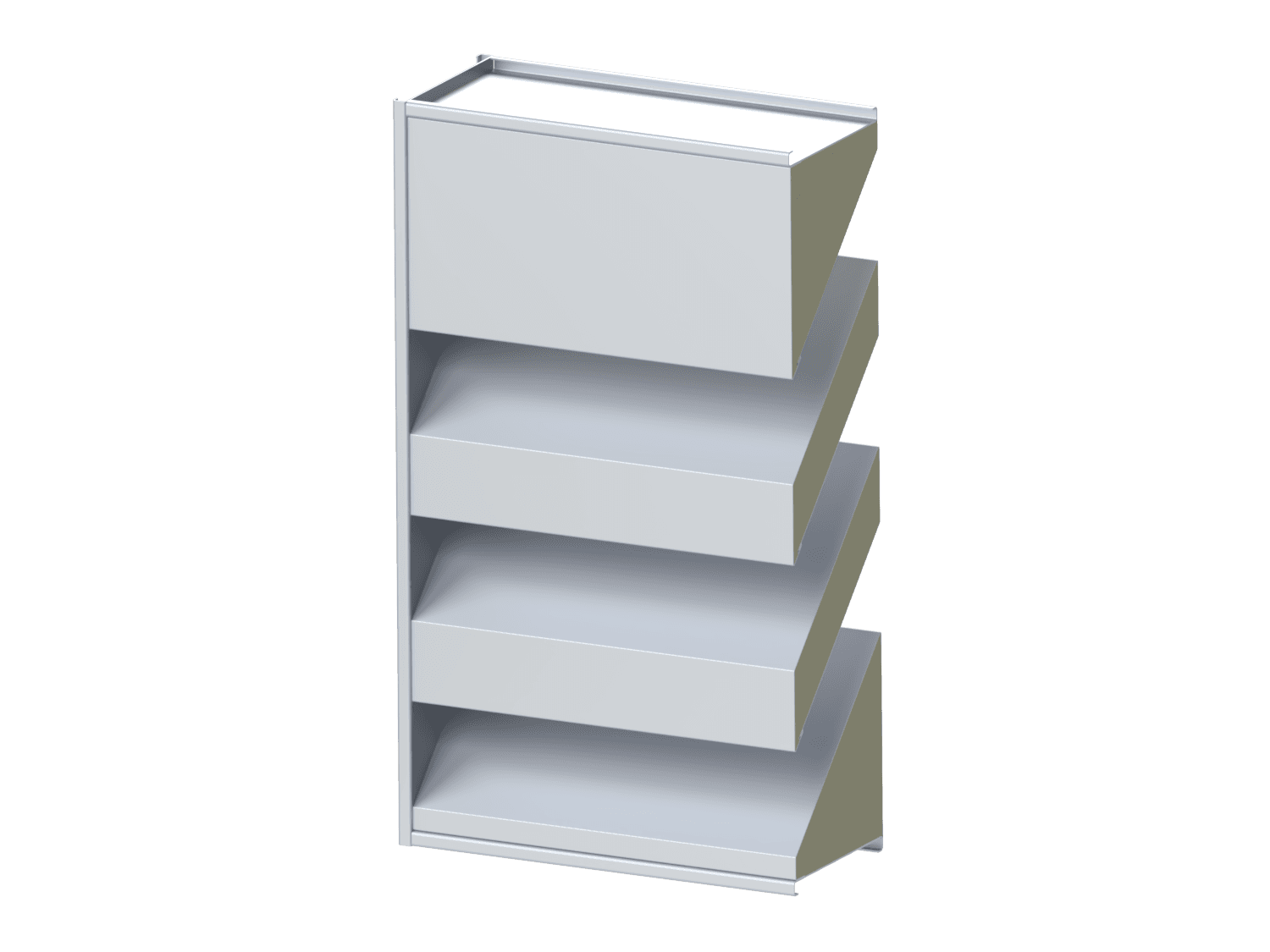

ACL1240 / ACL1245 12 Inch Deep Standard Blade
