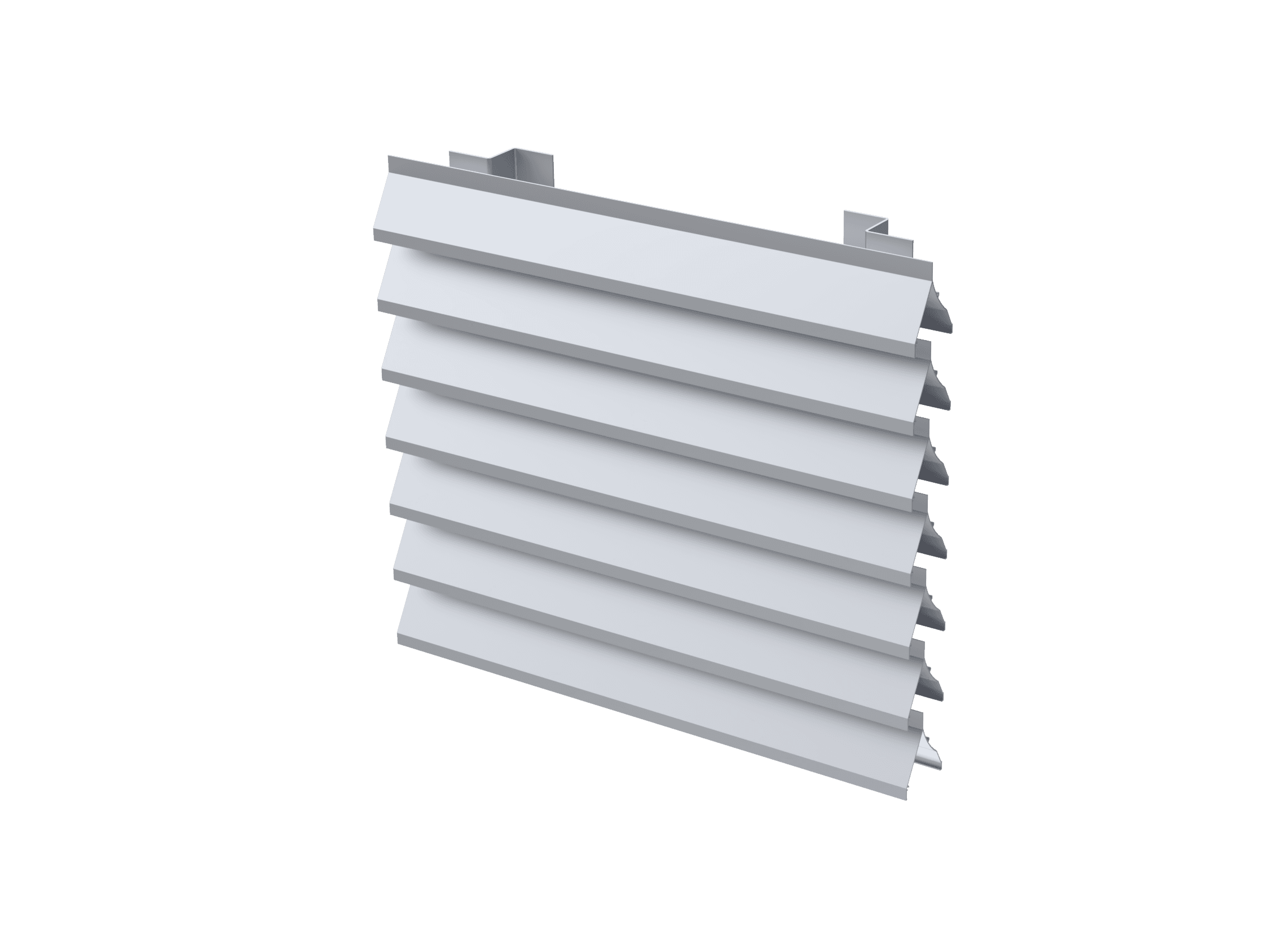

2440H Vision Screen - Horizontal Blade
The Ventex 2440H Vision Screen is a 4" deep extruded aluminum architectural screen designed to conceal rooftop mechanical equipment and other utilitarian building elements. The horizontal blade configuration is set at a 45° angle with 4.50" blade centres, delivering 33% free area. It is suited for rooftop mechanical screening, parking structures, cooling tower enclosures, and similar applications where a clean exterior appearance is required.
Standard Construction
Additional Notes
The 2440H Vision Screen is available in mill finish as standard, with baked enamel, Duranar, and anodized finish options available.
The 2440H features extruded 6063-T5 aluminum construction with 0.081" frame and blade thickness and 45° blade angle. It supports continuous line construction with hidden mullions for an uninterrupted appearance, and aluminum supports and clip angles are available for attachment to a structural frame. Hinged access doors and stainless steel fasteners are also available as accessories.
Documents
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
