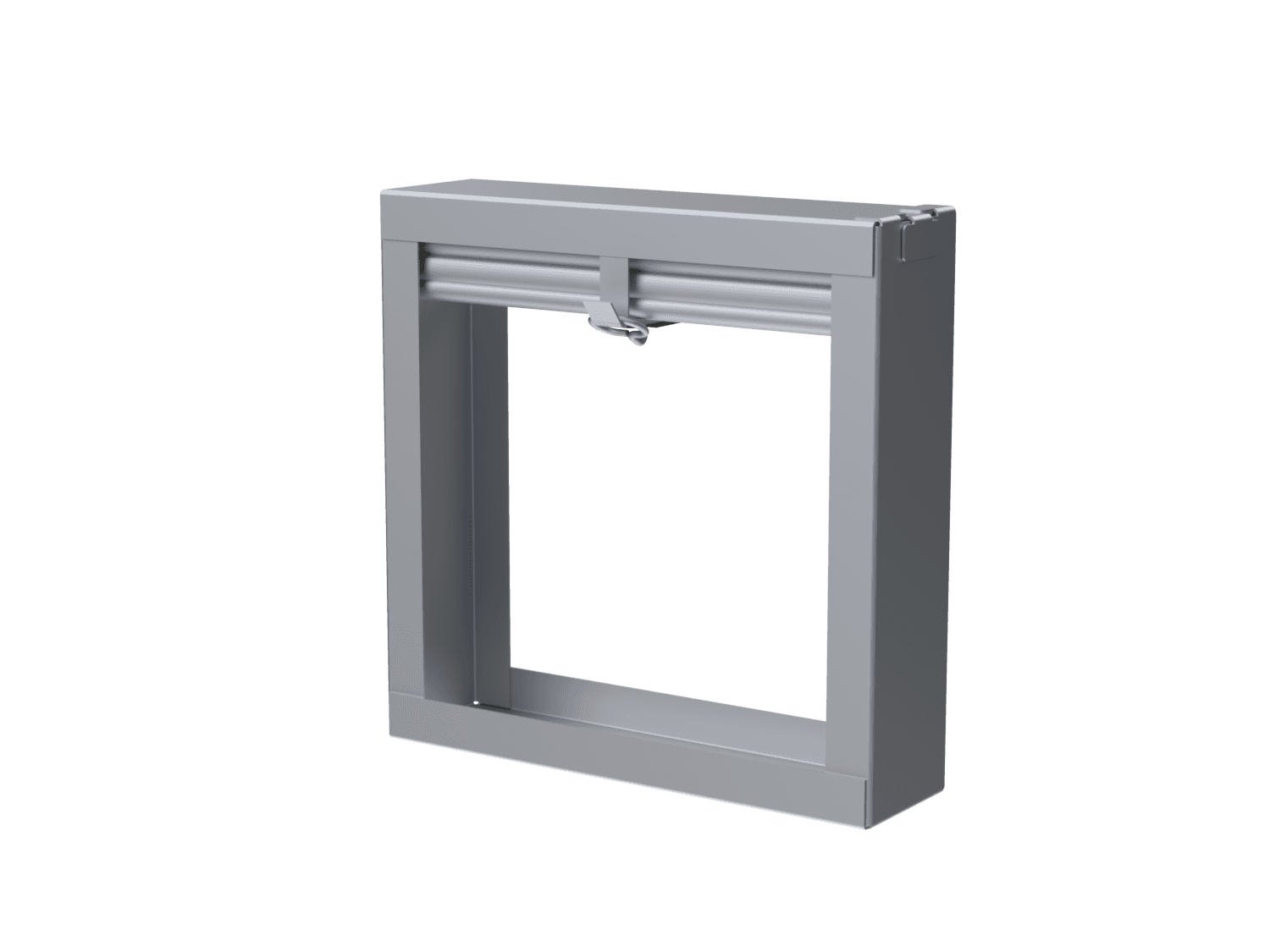

52BVS Thinline Type B Static Fire Damper
The Alumavent 52BVS is a Thinline 1-1/2 hour label static fire damper, UL/ULC approved for use in HVAC systems where fans automatically shut down in the event of a fire alarm. The reduced 2-1/8" depth makes it ideal for installation in narrow partitions or behind grilles where standard depth dampers cannot be accommodated. The Type B blade configuration positions the blades above the direct airflow path, and the interlocking curtain type blade design is suitable for use in fire separations with a fire resistance rating of 2 hours or less.
Standard Construction
Custom configurations available
This product can be manufactured in alternative materials, sizes, and mounting options to meet your project requirements. Contact us to discuss specifications.
Contact UsAvailable Accessories
Additional Notes
The 52BVS is UL/ULC certified for use as a 1-1/2 hour static fire damper in HVAC systems.
The 52BVS Thinline is designed for installation in fire-rated assemblies where partition depth is limited, such as narrow stud walls, masonry partitions, or installations behind architectural grilles. At 2-1/8" deep, it offers a significantly shallower profile than the standard 51-series dampers while maintaining the same 1-1/2 hour fire rating. The Type B configuration positions the blades above the direct airflow path, making it suitable for applications where the duct transitions into the fire separation at a different elevation. The interlocking curtain blade closes under spring tension when the fusible link releases.
