ACL600F / ACL605F 6 Inch Deep Airfoil Blade

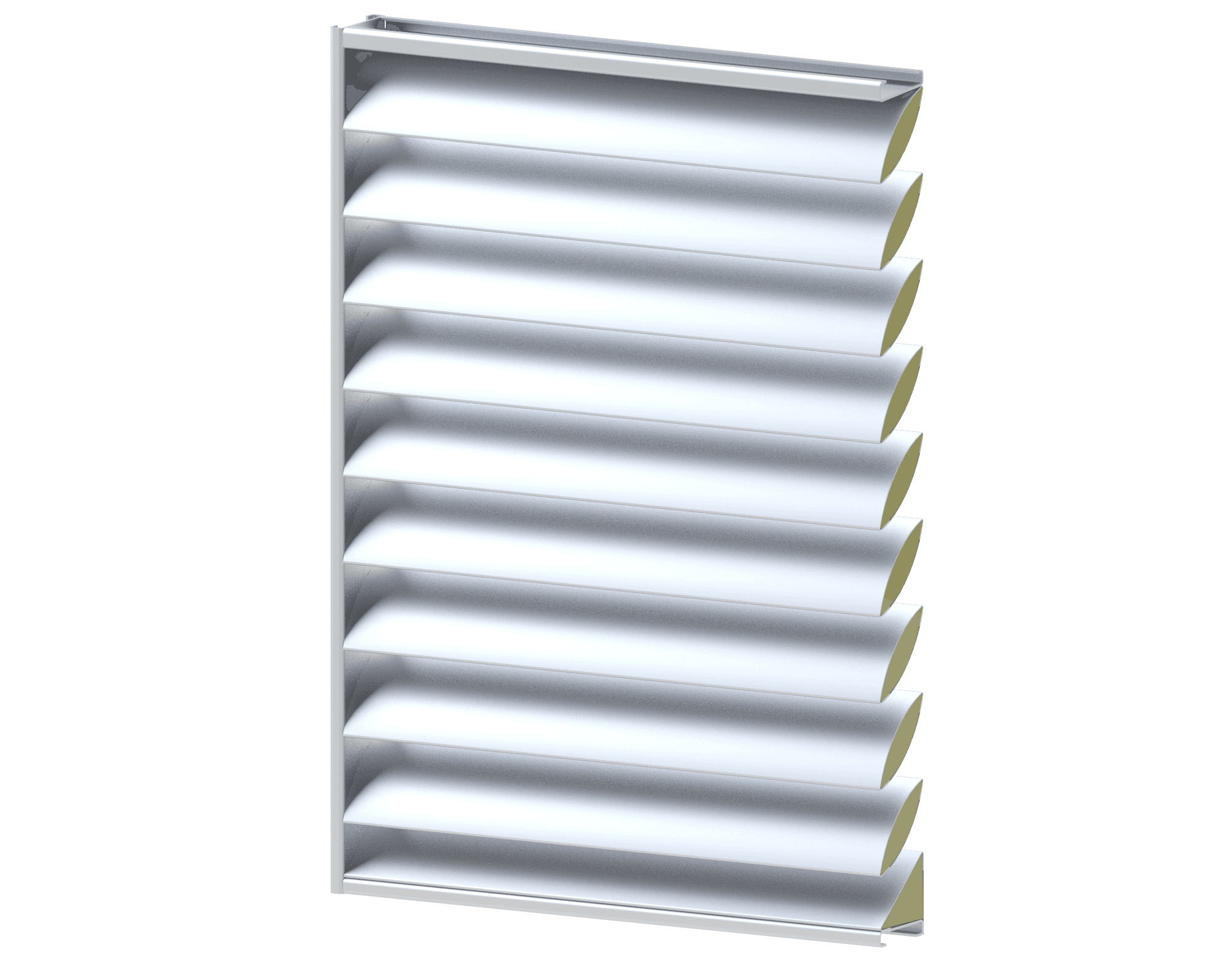

The Ventex ACL600F/ACL605F is a six inch (152 mm) deep, formed aluminum airfoil blade acoustic louver. The airfoil blade design exhibits lower pressure drop through the louver at higher velocities, making it well suited for demanding airflow applications. The ACL600F/ACL605F is designed for applications that require noise reduction alongside ventilation for equipment or machinery, and is commonly used in pumping stations and portable generators.
Standard Construction
Custom configurations available
This product can be manufactured in alternative materials, sizes, and mounting options to meet your project requirements. Contact us to discuss specifications.
Contact UsAvailable Accessories
Additional Notes
Certification and standards information for this product is not yet available. Please contact Ventex for more details.
The airfoil blade profile of the ACL600F/ACL605F produces lower pressure drop at higher air velocities compared to standard straight blade designs, making it the preferred choice when system pressure and airflow efficiency are priorities alongside noise reduction. At six inches deep, it is well suited for mechanical penthouses, rooftop equipment enclosures, and other applications where both high airflow and acoustic attenuation are required.
Documents
Finishes
Note: Colours shown are approximate electronic representations. Actual colours may vary. Physical colour samples are available upon request.
Find this product used in:
CHUM Research Centre (CRCHUM)
An urban academic research facility in downtown Montreal, the CHUM Research Centre integrates Ventex louver solutions to support the ventilation demands of a dense, laboratory-intensive research environment within a highly constrained urban site.
LocationMontréal, QC
ProductsACL600F / ACL605F 6 Inch Deep Airfoil Blade, ACL600V / ACL605V 6 Inch Deep Vee Blade, ACL640 / ACL645 6 Inch Deep Standard Blade, 2620 / 2625 6 Inch Stormproof Louvers
